Description
This TREMEC T5 transmission package is designed for the 87-93 Ford Mustang Foxbody’s equipped with a SBF engine and an auto transmission combination. Included in this kit is everything to correctly swap out your AOD transmission to a new Tremec T5 5-Speed manual transmission.
- NOTE: Factory automatic 79-93 Mustang’s, an underdash MalWood hydraulic clutch pedal assembly kit – HMS-MUS-79-93-AUTO is available if wanting to convert to hydraulics. You will also need the Hydraulic Throwout Bearing kit found here – HMS-78130
This complete auto to manual transmission swap package features the proven Tremec T5 5-speed transmission, which can handle up to 300 lb-ft. of torque. Widely known as the most popular and versatile 5-speed transmission in the industry, the T5 is the smoothest-shifting, and most reliable manual transmission for moderate horsepower applications.

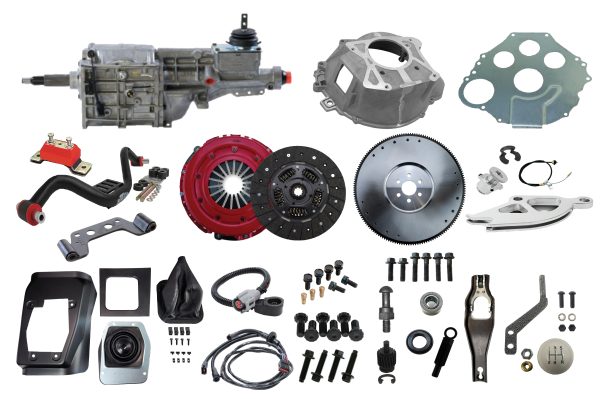

Package Includes:
- (1) TREMEC T5 5-Speed Manual Transmission
- (1) Tremec T5 Aluminum Bellhousing – TTKT18087
- (1) Ford Performance Engine Block / Index Plate 5.0L & 5.8L – HMS-M-7007-B
- (1) RAM Clutches HDX Clutch Kit – 88794HD
- (1) Ram Clutches Throw Out Bearing
- (1) RAM Clutches Billet Steel Flywheel – 0oz, 28oz, or 50oz
- (1) RAM Clutches Pilot Bearing
- (1) Ford Performance Pressure Plate Bolt & Dowell Kit 10.5″
- (1) RAM Clutches Flywheel Bolts
- (1) HMS Replacement Foxbody Clutch Fork
- (1) UPR Products Heavy Duty Clutch Cable, Quadrant, and Firewall Adjuster
- (1) HMS Clutch Cable Retaining Clip
- (1) Stifflers Crossmember Kit – TCB-M09
- (1) Energy Suspension Polyurethane Transmission Mount
- (1) Ford Performance Speedo Gear & Retaining Clip (Note: Rearend Gear Ratio & Rear Tire Size Required)
- (1) HMS Standard Motor Vehicle Speed Sensor
- (1) HMS Transmission to Bellhousing Bolt Kit
- (1) HMS Bellhousing to Block Bolt Kit
- (1) PRO 5.0 Deluxe Handle – Black / Silver Vein
- (1) HMS 5-Speedo Shift Knob – White or Black

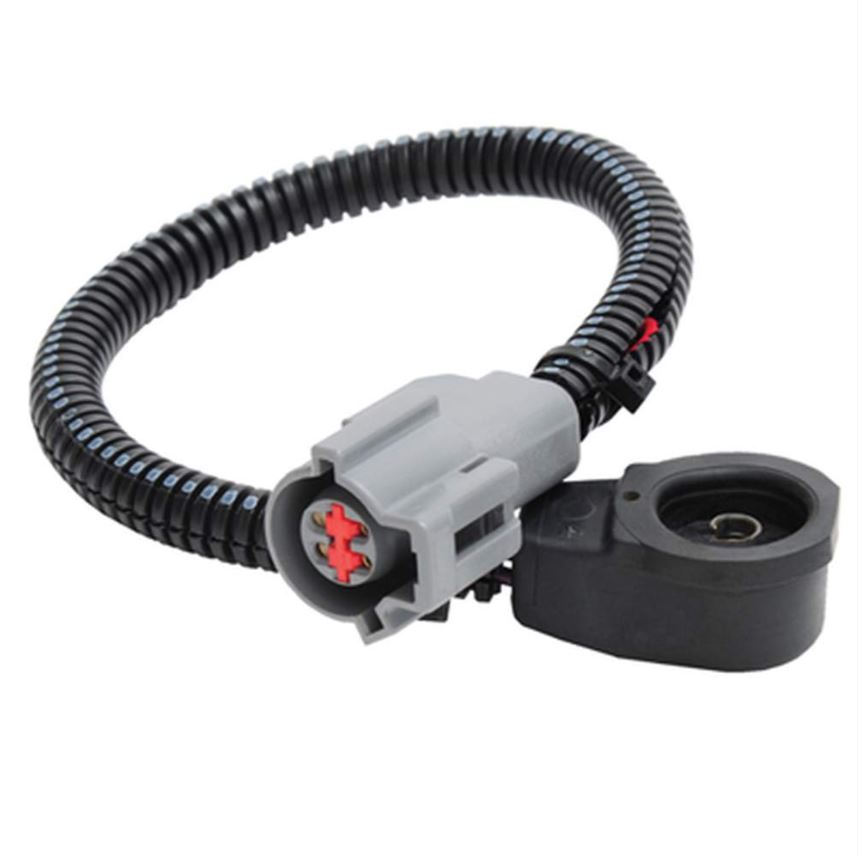

- (1) Ron Francis 87-93 Mustang Manual Transmission Backup Light Harness
- (1) Ron Francis 87-93 Mustang Manual Main Transmission Harness
- (1) Daniel Carpenter 86-93 Mustang Manual Mid-Pipe Exhaust Hanger
- (1) Daniel Carpenter Manual Transmission Tunnel Hump
- (1) Daniel Carpenter Lower Shift Boot w/ Metal Ring
- (1) Daniel Carpenter Lower Shift Boot Hardware Kit
- (1) Daniel Carpenter Leather Upper Shift Boot
- (4) Daniel Carpenter Upper Shift Boot to Shifter Bezel Clips
- (1) Daniel Carpenter 87-93 Manual Transmission Shifter Console Bezel
- (1) Daniel Carpenter Manual Transmission Shifter Bezel Hardware Kit
Package Does Not Include:
- Factory 87-93 Foxbody Manual Pedal Assembly
- Clutch Pedal Safety Switch
- 79-93 Speedo Cable
- Transmission Fluid

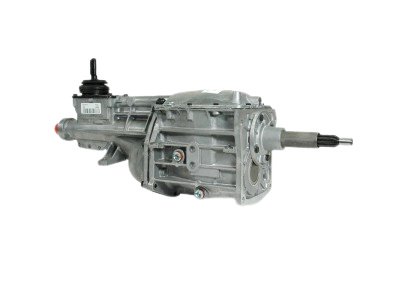

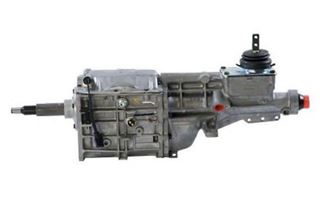

TREMEC T5 5-Speed Manual Transmission
Introduced in the early 1980’s, the T-5 has become a highly evolved, extremely compact and versatile 5-speed. In its rich history, the T-5 has been installed as original equipment in a variety of vehicles, from pick-up trucks and SUV’s to the fun to drive 5.0 Mustang.
Today, the T-5 still enjoys life as an original equipment unit in several overseas applications, while continuing to gain popularity in hot rod and performance markets. Dollar-for-dollar, pound-for-pound, the T-5 is the smoothest-shifting, and most reliable manual transmission for moderate horsepower applications.
Easily accepting up to 300 lb-ft of torque, the TREMEC T-5 is not only durable, but offers easy operation and a deep overdrive – making any hot rod, street car, or kit car more enjoyable to drive.
- Our most compact transmission
- 300 lb-ft. of torque capacity
- Extremely lightweight; just 75 lbs. dry!
- Ideal for moderate horsepower builds where space is limited
- Excellent drivability with light shift effort, smooth shift quality
- Exceptional fuel savings with 0.63:1 overdrive
- A favorite of many weekend cruisers, street-rodders, and kit car enthusiasts
- Built-in reverse light switch and cruise control safety switch.
- Gear Ratio’s: 2.95 1st, 1.94 2nd, 1.34 3rd, 1.00 4th, .63 5th
RAM Clutches HDX Clutch Kit: 88794HD
- Rated up to 450 horsepower
- 10.5 x 1-1/16″ x 10 spline
- Includes Pressure Plate, Clutch Disc, Release Bearing, and Alignment Tool
- 6 Spring Helix Hub

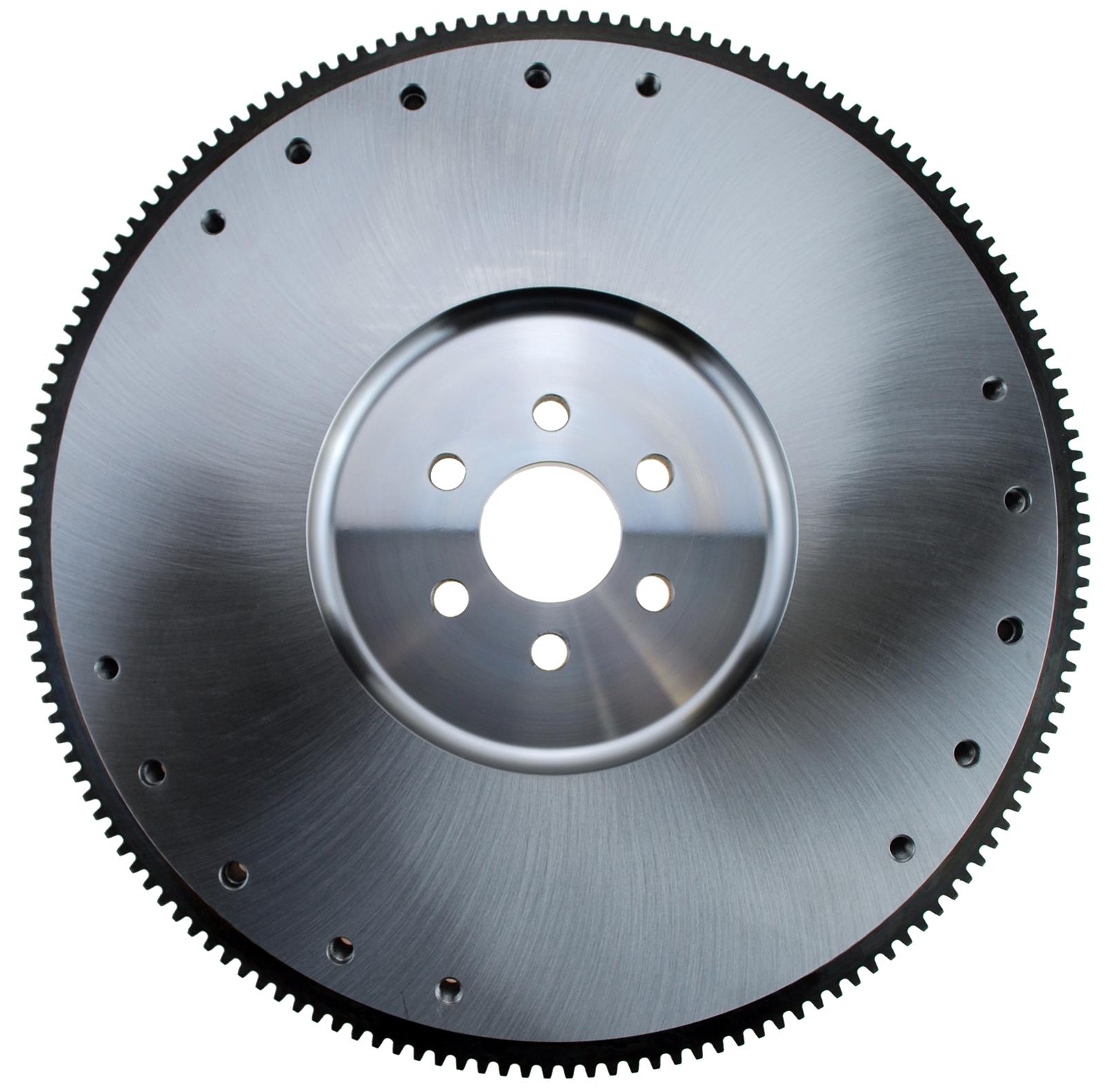

RAM Clutches Billet Steel Flywheel: Choice of Balance
- Billet Steel – Choose 0oz, 28oz, or 50oz Balance
- 6-Bolt, 157 Tooth
- SFI Certified
- Surface Ground for Parallel Mating Surface
- Fits 1986 to 1995 5.0 Mustangs, 93-95 Cobras
Tremec T5 Aluminum Bellhousing: TTKT18087
- Fits 1979-1993 5.0L or 5.8L with T5 Transmissions
- Cast Aluminum Construction
- Fits 157T Flywheels Only

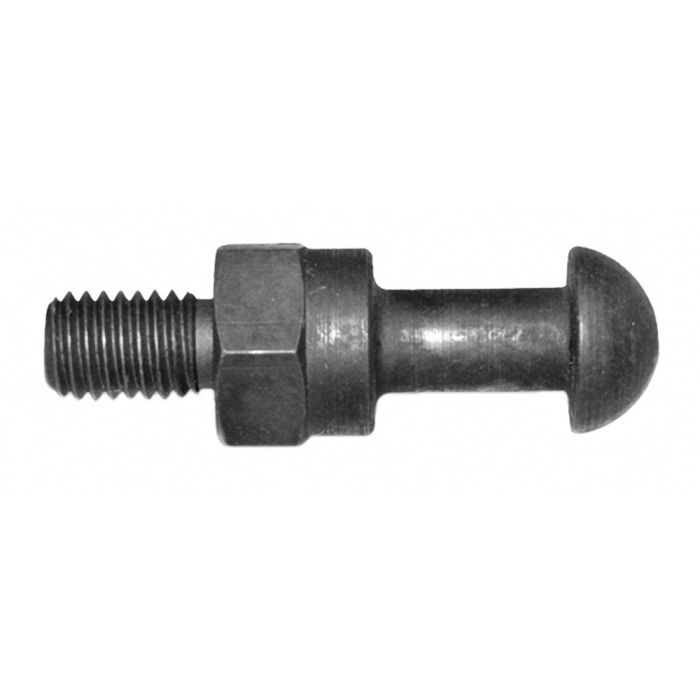

- Includes Pivot Stud, and Transmission to Bellhousing Hardware
- Does Not Include Engine Block Plate
Stiffler’s Crossmember Kit: TCB-M09
- Fits 82-93 Ford Mustangs With T5, TKO 3550, TKO 500/600 & TKX
- Strong, Compact & Lightweight Design
- Allows More Exhaust Clearance Than OEM Style
- Direct Fit To OEM Crossmember Mounts, NO FABRICATION REQUIRED!
- Works With SETBACK Engines
- Powder Coated For Endurance
Hardware:
- (1) RAM Clutches Throw Out Bearing
- (1) RAM Clutches Pilot Bearing
- (1) Ford Performance Pressure Plate Bolt & Dowell Kit 10.5″
- (1) RAM Clutches Flywheel Bolts
- (1) HMS Replacement Foxbody Clutch Fork
- (1) UPR Products Heavy Duty Clutch Cable, Quadrant, and Firewall Adjuster
- (1) HMS Clutch Cable Retaining Clip
- (1) HMS Standard Motor Vehicle Speed Sensor
- (1) Energy Suspension Polyurethane Transmission Mount
- (1) Ford Performance Speedo Gear & Retaining Clip (Note: Rearend Gear Ratio & Rear Tire Size Required)
- (1) HMS Bellhousing to Block Bolt Kit
- (1) PRO 5.0 Deluxe Handle – Black / Silver Vein
- (1) HMS 5-Speedo Shift Knob – White or Black
- (1) Ron Francis 87-93 Mustang Manual Transmission Backup Light Harness
- (1) Ron Francis 87-93 Mustang Manual Main Transmission Harness
- (1) Daniel Carpenter 86-93 Mustang Manual Mid-Pipe Exhaust Hanger
- (1) Daniel Carpenter Manual Transmission Tunnel Hump
- (1) Daniel Carpenter Lower Shift Boot w/ Metal Ring
- (1) Daniel Carpenter Lower Shift Boot Hardware Kit
- (1) Daniel Carpenter Leather Upper Shift Boot
- (4) Daniel Carpenter Upper Shift Boot to Shifter Bezel Clips
- (1) Daniel Carpenter 87-93 Manual Transmission Shifter Console Bezel
- (1) Daniel Carpenter Manual Transmission Shifter Bezel Hardware Kit
Package Does Not Include:
- Factory 87-93 Foxbody Manual Pedal Assembly
- Clutch Pedal Safety Switch
- 79-93 Speedo Cable
- Transmission Fluid
